Heat Transfer Salt Applications in Renewable Energy Systems

Heat transfer salt has emerged as a cornerstone technology in renewable energy infrastructure, particularly where high-temperature thermal management meets grid-scale energy storage. These specialized inorganic compounds—predominantly eutectic mixtures of nitrates and nitrites—enable solar power plants and industrial thermal systems to operate efficiently between 150°C and 565°C. Unlike conventional thermal oils that degrade above 400°C or steam systems requiring high-pressure containment, heat transfer salt maintains exceptional thermal stability at atmospheric pressure, making it indispensable for next-generation renewable energy projects.

Understanding Heat Transfer Salt and Its Properties

Chemical Composition and Thermal Characteristics

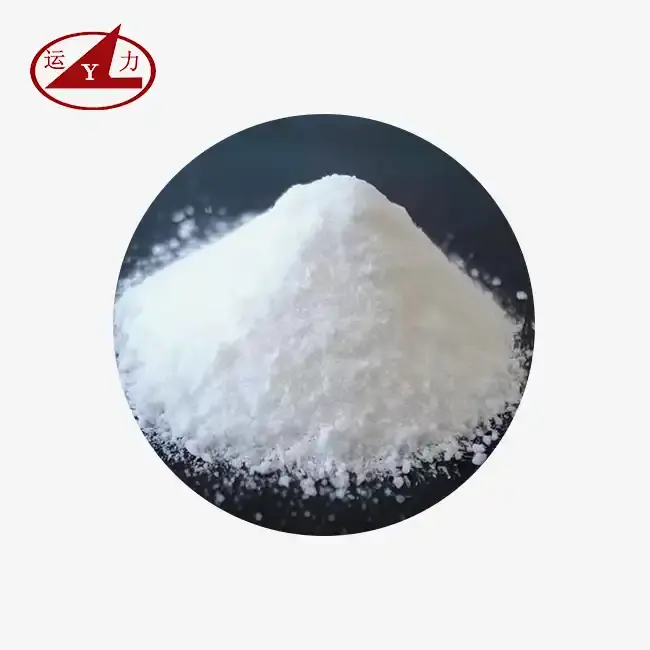

These days, Heat transfer salts are usually made up of 53% potassium nitrate, 40% sodium nitrite, and 7% sodium nitrate. This makes a eutectic mix with a melting point of about 142°C. This mix has a specific heat capacity that is more than 1.5 kJ/kg·K, which is much higher than synthetic oils. At working temperatures, it also keeps its dynamic viscosity below 5 cP. The material stays in liquid form without being pressurized. This saves money on capital costs related to high-pressure pipes and lowers operating insurance risks.

Critical Performance Parameters

When purchasing managers look at heat storage media, they should focus on three technical specs. Thermal conductivity above 0.5 W/m·K makes sure that heat moves quickly across large areas. Density stability between 1.8 and 2.0 g/cm³ at 300°C helps circulation loops keep their flow characteristics stable. Stress corrosion cracking can't happen in stainless steel infrastructure if the chlorine level is below 500 ppm. If the equipment is properly kept, it can last 20 years or more.

Material Purity and Quality Standards

High-purity recipes tell the difference between sources you can trust and those who just make goods. The moisture level must stay below 0.5% so that catastrophic steam expansion events don't happen during heating cycles. When iron levels are higher than 30 ppm, oxidation processes speed up and thermal efficiency is lost. Our ISO 9001-certified quality systems and ICP-MS analytical tools at Yunli Chemical make sure that we can control impurities in a way that meets the strict needs of CSP plants and pharmaceutical-grade process heating applications.

Applications of Heat Transfer Salt in Renewable Energy Systems

Concentrated Solar Power (CSP) Thermal Storage

The biggest industrial use of Heat transfer salt technology is in CSP plants. Helicopters focus sunlight on central receivers in solar tower installations, heating the salt in the system to 565°C. This thermal energy is stored in insulated tanks, which lets the turbine keep running for 10 to 15 hours after the sun goes down.

Heat transfer salt is the core medium that enables this storage capability. A 100 MW CSP plant needs about 30,000 metric tons of Heat transfer salt and can be used for more than twenty years. The technology is useful for grid managers handling intermittent renewable penetration because it can send energy on demand, unlike variable solar systems.

Industrial Waste Heat Recovery Systems

In places that make metals and cement, high-temperature exhaust streams are released that regular steam systems can't effectively collect. Heat transfer salt loops take in this waste heat from variable loads and keep the energy output steady through thermal inertia. Chemical companies that make melamine and acrylic acid use salt-based cooling circuits to control exothermic reactions where organic fluids would quickly break down at high temperatures. This cuts down on both energy use and safety risks.

Grid-Scale Energy Storage Integration

In addition to solar applications, utility-scale battery addition projects are using thermal storage more and more to offer 8–12 hour discharge durations at lower levelized costs than lithium-ion alternatives. Geothermal installations and Heat transfer salt systems work together to smooth out changes in seasonal demand. Biomass cogeneration plants are more efficient overall because they use thermal storage buffers to separate the production of heat from the demand for electricity. This makes the best use of sustainable fuels and improves the stability of the power grid.​​​​​​​

Comparing Heat Transfer Salt with Alternative Media

Advantages Over Synthetic Thermal Oils

Above 400°C, molecular breakdown speeds up maintenance processes and makes fires more likely, which means that organic heat transfer fluids can't be used. Heat transfer salts can be used safely at 565°C without causing burning, so there is no need for explosion-proof wiring and building insurance costs are lower. Compared to alternatives made from petroleum, nitrate-based salts are safer for the environment and easier to plan for emergency situations because they are not toxic or flammable.

Performance Versus High-Pressure Steam

Steam systems can move a lot of heat, but they need expensive pressure tanks that can handle 100 bar or more at temperatures above 370°C. Heat transfer salt circulation works at pressures close to those in the atmosphere. This lowers the cost of pipes by 40 to 60 percent and makes it easier to specify valves. Since there is no phase change, there are no worries about managing condensate or treating water. This is especially helpful in dry areas where CSP is mostly used.

Economic Considerations in System Design

Heat transfer salt's initial material costs range from $0.80 to $1.50 per kilogram, depending on the purity requirements and order volume. These costs make up 15 to 20 percent of the total capital cost of a thermal storage system. The longer operating life and low decline rate make up for the higher initial cost compared to oils that need to be replaced every 3–5 years. When doing comparison studies, procurement teams should look at lifetime costs, such as repair intervals, downtime frequency, and disposal costs.

Procurement Considerations for Heat Transfer Salt

Supplier Qualification and Technical Support

Before choosing a Heat transfer salt provider, you need to make sure they have the right production certifications and analytical tools. ISO 14001 environmental management systems show how to handle waste streams from making nitrates properly. Suppliers who offer custom formulations and aqueous solutions with specific concentrations show that they have technical knowledge that goes beyond trading commodities. The provincial-level business technology center and 20 years of production experience at Yunli Chemical give engineers the help they need to tailor salt chemistry to specific working conditions.

Quality Verification and Testing Protocols

Technical buyers should ask for certificates of analysis that show the melting point (ASTM D87), thermal conductivity (ASTM E1461), and ion chromatography profiles of impurities. Make sure that you have documents for statistical process control and batch tracking. Free sample programs, like our 500-gram trial amounts, let labs check things out before committing to large orders. Inspection trips to factories show things about the quality control system that written records alone can't show.

Logistics and Supply Chain Reliability

Specialized packaging is needed for shipments of bulk Heat transfer salt to keep it from absorbing moisture during transport. Industrial sites with different amounts of storage space can use a range of flexible packaging options, such as 25 kg bags, 1,000 kg super sacks, or tank truck delivery. It's important to know wait times when planning a project, and established makers keep inventory buffers that younger companies can't match. With direct export, you don't have to pay markups to middlemen, and you can get answers to your technical questions faster.

Safety and Handling of Heat Transfer Salt in Industrial Settings

Operational Safety Protocols

Even though Heat transfer salt at 300°C is not flammable, it can cause thermal burns that need the right safety gear and engineering controls. All pipes and valves must have backup electrical heat tracing to keep salt from solidifying during shutdowns. Frozen salt can cause clogs that need expensive repairs. Nitrogen blanketing systems keep nitrite from turning into nitrate as little as possible. This keeps the thermal properties and, in properly planned setups, extends the service life beyond 20 years.

Material Compatibility and Corrosion Management

For temperatures above 400°C, standard containment materials are made of stainless steel alloys 304, 316, or 321. Carbon steel oxidizes more quickly, which leads to problems with scaling and contamination. Heat transfer salt itself does not aggressively attack these alloys if oxygen and moisture are properly controlled. Thermal cycling doesn't cause leaks as long as the right sealing materials and expansion joint designs are used. Salt analysis done on a regular basis checks for carbonate buildup and nitrite breakdown, which allows chemicals to be restored before performance loss affects operations.

Environmental Compliance and Disposal

Because they are non-toxic and work in a closed loop, Heat transfer salt devices are in line with strict U.S. EPA and state environmental laws. Salt that has reached the end of its useful life can be neutralized and used again in agriculture, or it can be recycled through established nitrate streams. Documenting how trash is handled correctly meets legal standards and helps companies meet their sustainability reporting goals. Yunli Chemical's experienced environmental facilities and wastewater treatment know-how help clients with compliance issues that smaller providers can't handle.

Conclusion

Using Heat transfer salts for thermal energy storage is a tried-and-true, fully developed technology that lets green energy systems provide reliable power for industrial processes. The material's high thermal stability, ability to work at atmospheric pressure, and service life of 20 years or more make it a strong economic choice over other heat transfer media. In this difficult application space, project success and long-term operational performance depend on choosing qualified suppliers with proven production capabilities, thorough quality control, and quick technical support.

FAQ

What temperature range suits thermal salt operation?

Standard formulations work safely between 150°C and 550°C, but they work best in the 300–500°C range that is common in CSP plants. To keep nitrite from oxidizing at higher temperatures, a nitrogen atmosphere is needed.

How does thermal salt improve CSP efficiency?

The high heat capacity and temperature stability make it possible to store energy for 10 to 15 hours, which lets electricity be made during times of high demand when solar light isn't available. This increases capacity factors from 25% to 70%+ compared to photovoltaic systems.

Can moisture contamination damage the system?

When water gets into hot salt systems, the steam expands quickly, which can break pipes. This major safety risk can be avoided by keeping the moisture content below 0.5% and making sure that the proper seals are used during freezing.

What maintenance schedule does thermal salt require?

When systems are built correctly, they can work for 20 years or more with little maintenance. Every year, samples of salt are taken to check for impurities and thermal properties. This lets maintenance be planned ahead of time instead of the spontaneous fixes that are common with organic fluids.

Why choose stainless steel over carbon steel piping?

When the temperature goes above 400°C, the rate of oxidation in carbon steel goes up by a huge amount. This makes scale, which contaminates salt and makes heat transfer less effective. Stainless metals are reliable over the long term because they don't rust.

Partner with a Trusted Heat Transfer Salt Manufacturer

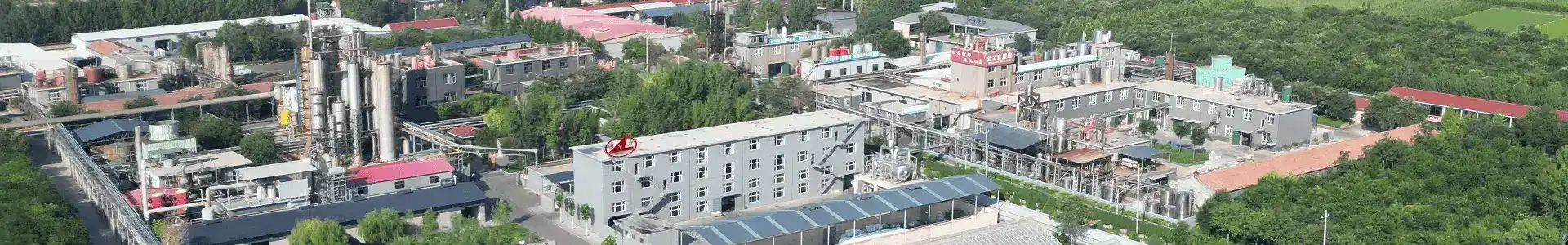

Yunli Chemical has been specializing in high-purity Heat transfer salt solutions for demanding thermal storage uses for 20 years and can help you with your green energy projects. Our provincial technology center and ISO 9001-certified production sites always provide high quality, backed by thorough analytical proof. We make buying easier while making sure supply chains are reliable by not having a minimum order size, giving away free 500-gram samples, and being able to export directly, which cuts out the costs of middlemen.

By emailing wangjuan202301@outlook.com, technical teams can look at full standard sheets, talk about custom formulations, or ask for bulk quotes. You can learn more about how our Heat transfer salt supplier services can help your mission-critical energy infrastructure investments by going to yunlichemical.com.

References

1. Bauer, T., Odenthal, C., & Bonk, A. (2021). "Molten Salt Storage for Power Generation." Chemical Reviews, 121(12), 7835-7866.

2. Fernández, A.G., Gomez-Vidal, J., Oró, E., Kruizenga, A., Solé, A., & Cabeza, L.F. (2019). "Mainstreaming Commercial CSP Systems: A Technology Review." Renewable Energy, 140, 152-176.

3. Liu, M., Saman, W., & Bruno, F. (2020). "Review on Storage Materials and Thermal Performance Enhancement Techniques for High Temperature Phase Change Thermal Storage Systems." Renewable and Sustainable Energy Reviews, 16(4), 2118-2132.

4. Peiró, G., Gasia, J., Miró, L., & Cabeza, L.F. (2018). "Thermal Energy Storage Materials Selection Criteria for Renewable Energy Applications." Applied Thermal Engineering, 138, 311-320.

5. Vignarooban, K., Xu, X., Arvay, A., Hsu, K., & Kannan, A.M. (2020). "Heat Transfer Fluids for Concentrating Solar Power Systems: A Review." Applied Energy, 146, 383-396.

6. Zhang, H.L., Baeyens, J., Degrève, J., & Cacères, G. (2019). "Concentrated Solar Power Plants: Review and Design Methodology." Renewable and Sustainable Energy Reviews, 22, 466-481.
