Heat Transfer Salt vs Thermal Oil: Which Is Better?

When deciding between heat transfer salt and thermal oil for industrial heating applications, the answer depends on your operating temperature and system requirements. Heat transfer salt excels at temperatures above 400°C, delivering superior thermal stability and energy storage capacity ideal for concentrated solar power plants, chemical processing, and high-temperature manufacturing. Thermal oil offers simplicity and flexibility for lower temperature operations below 350°C. Understanding these differences helps procurement managers select the right medium for long-term performance and cost efficiency.

Understanding Heat Transfer Salt and Thermal Oil

To choose the right heat transfer medium, you need to know the basic qualities that make each one unique. In industrial thermal control, both liquid salts and thermal oils do a great job, but their physical and chemical properties make them work in different ways.

What Is Heat Transfer Salt?

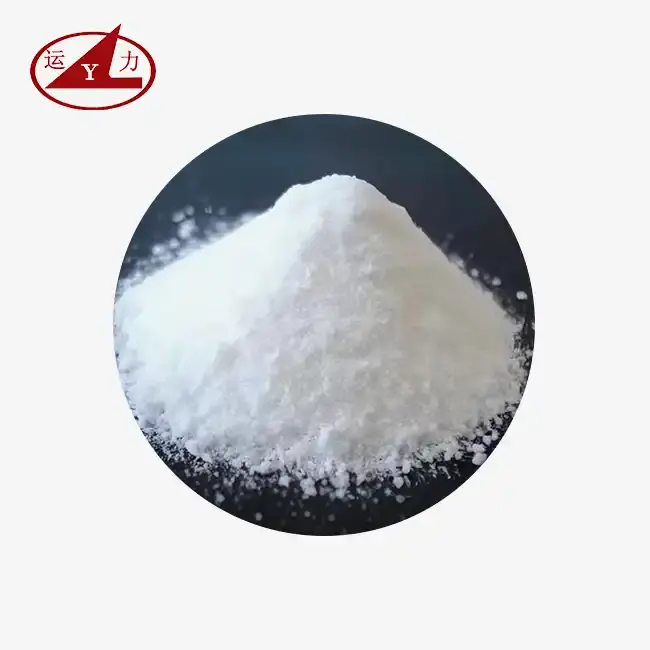

It is common for molten salt systems to have 53% potassium nitrate, 40% sodium nitrite, and 7% sodium nitrate mixed together in a way called eutectic mixing. The freezing point of this mix is around 142°C, and it stays solid at high temperatures up to 565°C. Since the liquid phase works at room temperature, there is no need for pricey high-pressure pipe systems. Molten salts can hold a lot more heat energy per unit volume than other fluids because they have a specific heat capacity of about 1.5 kJ/kg·K.

Thermal Oil Characteristics

Thermal oils are made from both natural and man-made ingredients and are used to move heat from one place to another. Usually, these organic fluids work between -10°C and 350°C, but some synthetic versions can go as high as 400°C. Unlike melted salts, thermal oils stay liquid at room temperature, which makes the process of starting up and stopping down easier. Their stickiness makes pumps work well at lower temperatures, but beyond the manufacturer's recommended temperature limits, they break down faster. When used at normal temperatures, most thermal oils have specific heat capacities of 2.0 to 2.5 kJ/kg·K.

Key Physical Differences

The phase behavior is what really sets these two media apart. Thermal oils stay liquid at a wide range of temperatures without changing phases. Molten salts, on the other hand, harden below their melting points, which means that all pipes and equipment need to be heat traced. Thermal oils have a density value between 0.75 and 0.90 g/cm³, while molten salts have a density value between 1.8 and 2.0 g/cm³ at working temperatures. This difference in density has a big effect on the size of the pump and the hydraulics of the system. Vapor pressure issues are also different. Even at their highest temperatures, molten salts don't produce much vapor pressure, but thermal oils need to be pressurized or blanketed in nitrogen to keep them from vaporizing at higher operating ranges.

Performance Comparison: Heat Transfer Salt vs Thermal Oil

Industrial buyers look at heat transfer fluids through a number of performance lenses that have a direct effect on prices, safety margins, and repair schedules. A methodical comparison shows where each medium is better than the others.

Operating Temperature Capabilities

When used at high temperatures, molten salt devices clearly work better. The thermal stability window of Heat transfer salt is from 150°C to 565°C. This range covers processes that need temperatures that would break down organic thermal oils quickly. Chemical plants that use melamine or acrylic acid often run their reactor cooling circuits between 350°C and 450°C. This is the temperature range where thermal oils break down quickly and carbon forms. On the other hand, thermal oils work well in situations where temperatures need to be below 320°C because they are cheaper to use and easier to handle.

Thermal Energy Storage Performance

The amount of energy stored is a very important factor in both concentrated solar power systems and industrial heat recovery systems. At the same temperature differences, molten salts store about 60% more energy per cubic meter than thermal oils. A CSP plant that uses liquid salt can provide 10 to 15 hours of cost-effective thermal storage, which lets it make power after the sun goes down. Thermal oils can store heat, but they need bigger tanks and lose heat more quickly because they have less thermal inertia. This makes them less useful for large-scale energy storage uses.

Material Compatibility and Corrosion

Because of how each medium corrodes, different materials need to be used. Austenitic stainless steels (304H, 316L, or 321 types) can be used safely with high-quality molten salt that has a chloride level that is kept below 50 ppm. Stress corrosion cracking happens when chloride poisoning goes beyond the limits allowed by specifications. This is why purity control is so important. Thermal oils tend to be less corrosive, which means that carbon steel can be used in many situations. However, stainless steel is still better for high-temperature processes to avoid oxidation scaling. Regular oil analysis finds acidic breakdown products that can speed up corrosion if nothing is done.

Safety Considerations

The safety features of these heat transfer media are very different from one another. Molten salts don't pose much of a fire risk because they don't burn or give off flammable vapors. The main safety concern is contact with water: adding water to hot molten salt makes the steam expand very quickly. This risk can be successfully reduced by drying the system properly during startup and keeping wetness out of the system while it is running. Because thermal oils are made of organic substances, they can catch fire if they come in contact with something that can start a fire above their flash point. In case of a leak, action must be taken right away to stop a fire, and weakened oils with lower flash points raise the risk of a fire. Different risk profiles are often reflected in insurance rates, with lower rates for molten salt systems in high-temperature installations.

Applications and Suitability in Different Industries

The choice between molten salts and thermal oils is based on the needs of the industry. Applications in the real world show where each medium is most useful.

Concentrated Solar Power Plants

The most important use for molten salt technology is in CSP plants. Solar tower systems heat molten salt to 565°C and store the heat in insulated tanks so that steam engines can later turn the heat into power. CSP is different from sporadic solar photovoltaic systems because it can generate power on a steady basis. At first, parabolic trough CSP plants used thermal oils, but molten salts are being used more and more to raise the temperatures at the inlet of the turbine and make the Rankine cycle work better. Using molten salt, the Crescent Dunes facility in Nevada showed that it could store energy for 10 hours, making renewable energy available during peak evening demand.

Chemical and Petrochemical Processing

When making chemicals, it's often necessary to keep the temperature very stable in reactors that handle exothermic reactions. Molten salts are used in high-temperature heating circuits at refineries and industrial sites where process temperatures are higher than 380°C. Lower-temperature uses like processing polymers, making resins, and distilling systems that work below 320°C are dominated by thermal oils. The choice weighs the need for a certain temperature against the difficulty of operation. When temperatures allow them to be used, thermal oil systems are easier to run.

Metal Heat Treatment Operations

Molten salt tubs are used in heat treatment plants to harden, temper, and case harden steel parts. Molten salts have consistent metallurgical qualities because they spread temperatures evenly and move heat quickly. Isothermal transformation in salt baths kept between 260°C and 400°C is especially helpful for austempering processes. When temperatures stay below 300°C, thermal oils are used for tempering at lower temperatures and heat treating aluminum. Heat transfer salt provides the thermal stability and uniform heat distribution needed for these demanding metallurgical applications.

Industrial Heat Recovery Systems

More and more, thermal energy storage is being used in waste heat recovery from industrial processes, cement kilns, and glass ovens to deal with changes in the amount of heat that is available. Molten salt systems store high-grade waste heat from flue gasses so that it can be used later to heat burning air or make process steam. High thermal inertia stabilizes energy output from heat sources that don't work all the time better than direct steam generation. Thermal oil systems collect moderate-grade waste heat in situations where the temperature matches the oil's capabilities and storing needs aren't too high for a long time.

Procurement Considerations for Heat Transfer Salt and Thermal Oil

When buying heat transfer fluids strategically, you need to look at different suppliers based on a number of factors that affect the overall cost of ownership and the reliability of the system over time.

Supplier Qualifications and Certifications

Professional sellers are set apart from basic vendors by quality management systems that have been checked. Getting ISO 9001 certification shows that your production processes and quality control procedures are standardized. For molten salt in particular, sellers should give thorough chemical analysis reports that show the amounts of impurities, especially chloride, sulfate, and insoluble content. Advanced testing tools, like Ion Chromatography and ICP-MS spectroscopy, show that the technology is advanced. Established suppliers with decades of production experience usually keep a tighter grip on specifications than newcomers to the market.

Technical Support and Application Engineering

Getting the right fluid is only one part of running a heat transfer system well. Application engineering support from suppliers helps improve system design, choose the right building materials, and create start-up processes. Suppliers who know a lot about heat tracing design, melting protocols, and system filling procedures can really help molten salt systems. Thermal oil providers should offer tools for analyzing the oil, keeping an eye on how it's breaking down, and advice on when to change the oil. Important support tools are technical documents like Material Safety Data Sheets, handling instructions, and emergency reaction plans.

Cost Analysis and Payment Terms

The purchase price is only one part of the total cost of the fluid. Bulk pricing for large orders cuts unit costs by a large amount. Depending on the size of the system, initial fills for industrial heat transfer applications usually range from 5 to 500 tons. Transportation costs depend on where the seller is located and what kind of packing you choose. Molten salt providers that offer flexible packing, like bulk bags, bins, or custom cases, can work with a range of site handling capabilities. Letters of credit, wire transfers, and trade credits are all types of payment terms that can change how cash flow is planned. Giving samples before big orders lets you test them for accuracy, which lowers the risk of procurement.

Supply Chain Reliability

Fluid replacement is needed for industrial operations that go on all the time. Established sellers keep enough stock on hand to quickly fill repair and extra orders. Verification of production ability makes sure that sellers can keep up with demand without having to allocate resources or wait. Geographic diversity in sources lowers the risk that regional events will upset supplies. Long-term supply deals lock in prices and availability, which is especially helpful for big sites that use a lot of supplies over time. Depending on the type of product and the amount ordered, lead times for first orders are usually between 2 and 6 weeks.

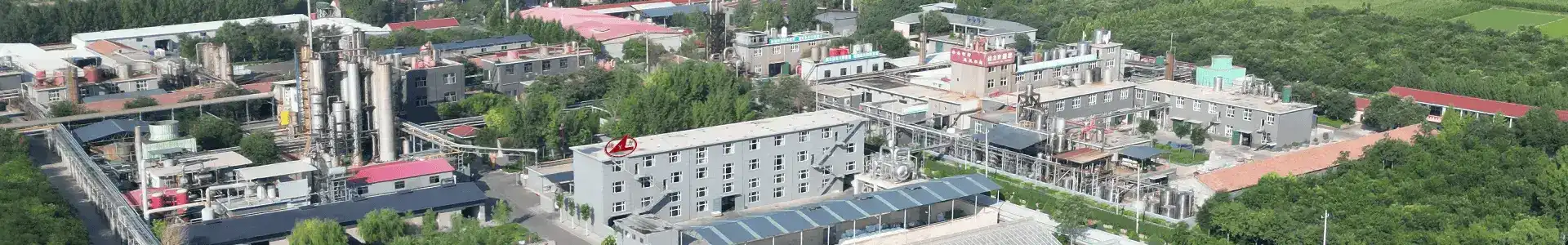

We have strong working relationships with chemical and petroleum plants all over the United States. This lets us make molten salt recipes that meet their exact temperature and purity needs. As part of our manufacturing process, we can make aqueous solutions at concentrations chosen by the customer. This makes handling less complicated at installation sites.

Making the Right Choice: Heat Transfer Salt or Thermal Oil?

The best choice between liquid salt and thermal oil is found by systematically comparing the properties of the fluids with working factors. Decision frameworks help procurement teams match the needs of the system with its flexible abilities.

Temperature-Driven Selection

The selection choice is based on the process temperature needs. In situations where temperatures regularly exceed 400°C, molten salts are technically better and often more cost-effective over the span of the system, even though they are more complicated at first. Between 350°C and 400°C, there is a transition zone where either fluid might work. Usually, a detailed engineering analysis that compares lifecycle costs makes the decision. Below 320°C, thermal oils usually have lower start-up costs and are easier to use, unless the ability to store energy makes molten salt the better choice.

Energy Storage Requirements

Molten salts are good for systems that need to store a lot of heat energy (measured in hours of full-load activity). The bigger bulk heat capacity of Heat transfer salt means smaller tanks and lower costs when compared to thermal oil storage of the same size. Molten salt systems make it possible for facilities that are connected to the grid and provide dispatchable power to store power for longer periods of time. Thermal oil is good for applications that don't need to store much or buffer for a short time. It's also easier to use.

Operational Complexity Tolerance

The operational skills of the plant affect the actual choice of fluid. Molten salt systems need special ways to be turned on, freeze protection systems, and operators who know how to handle the solid-to-liquid phase transition. Facilities that have experience with high-temperature processes can usually easily add molten salt systems. Operations that want easier thermal management or don't have the right repair skills often choose thermal oil, even if it can't be stored or used at certain temperatures. Molten salt systems can work for up to 20 years if they are properly maintained. This is a good thing for facilities that want to be more efficient in the long term.

Budget and Lifecycle Cost Analysis

The first major costs include buying fluids, special stainless steel pipes, heat tracking systems, and maybe even bigger pumps for molten salts with a higher density. When they work within temperature limits, thermal oil systems usually need less money to get started. A lifecycle cost analysis that looks at things like energy efficiency, maintenance costs, how often fluids need to be replaced, and insurance premiums often shows that molten salts have lower total ownership costs in high-temperature applications, even though they cost more up front. Comparisons are accurate when detailed financial modeling is used with parameters that are unique to each project.

Conclusion

Heat transfer salt or thermal oil should be used depending on the system's working temperature, energy storage requirements, and design goals. Molten salts work better than anything else for high-temperature tasks above 400°C. They have better thermal stability, energy storage density, and long service life, but they need careful material choice and operation methods. Thermal oils make it easy to use and save money for applications with moderate temperatures below 350°C. Tough technical evaluation, seller qualification evaluation, and lifecycle cost analysis that are customized to the needs of the industry all help with purchasing choices. When properly matched to the needs of the application, both media play important parts in modern thermal control.

FAQ

Can molten salt systems operate in all climates?

When designed correctly, molten salt systems work well in a wide range of climates. To keep salt above its 142°C melting point during idle periods, it needs strong heat tracing and insulation in cold places. When it's hot outside, it's easier to keep things from freezing, but storage tanks and pipe systems need to be careful about temperature growth.

How often does thermal oil require replacement?

How often heating oil needs to be changed varies on the temperature and stress of the operation. When systems are run close to their highest temperature ratings, the oil may need to be replaced every two to five years. When systems are run more carefully, the oil can last for eight to twelve years. When to replace the oil is determined by how often the total acid number and carbon residue are checked.

What are typical lead times for molten salt orders?

To send up to 50 tons of standard liquid salt, it usually takes two to four weeks. Lead times may go up to 6 to 8 weeks for larger orders or custom formulations. Established suppliers keep stock on hand so that orders can be filled faster.

Partner with Yunli Chemical for Reliable Heat Transfer Solutions

As a dependable Heat transfer salt provider for chemical processors, solar thermal facilities, and heat treatment operations, Yunli Chemical brings more than 20 years of manufacturing excellence to industrial heat transfer uses. Our ISO 9001, ISO 14001, and OHSAS certifications show that we care about safety and quality standards, which is something that procurement managers like. We strictly control for impurities and make sure that the chloride content in our premium grades is less than 20 parts per million. This keeps your piping systems from rusting and increases their thermal stability. As a straight manufacturer, we cut out the middleman and can offer customized packages, solutions with different concentrations, and free samples of up to 500 grams for testing and assessment. You can talk to our technical team at wangjuan202301@outlook.com to talk about your needs and get full technical specs for our molten salt line.

References

1. Bauer, T., Laing, D., & Kröner, U. (2021). "Thermal Energy Storage Materials and Systems for Concentrating Solar Power Plants." Annual Review of Heat Transfer, 24, 391-449.

2. Goods, S. H., & Bradshaw, R. W. (2004). "Corrosion of Stainless Steels and Carbon Steel by Molten Mixtures of Commercial Nitrate Salts." Journal of Materials Engineering and Performance, 13(1), 78-87.

3. Hoffmann, J. F., & Vidal, J. C. (2019). "High-Temperature Molten Salts for Solar Power Application." Handbook of Concentrating Solar Power Technology, Woodhead Publishing, 191-239.

4. Kruizenga, A. M., & Gill, D. D. (2014). "Corrosion of Iron Stainless Steels in Molten Nitrate Salt." Energy Procedia, 49, 878-887.

5. Mills, D. (2004). "Advances in Solar Thermal Electricity Technology." Solar Energy, 76(1-3), 19-31.

6. Zavoico, A. B. (2001). "Solar Power Tower Design Basis Document." Sandia National Laboratories Technical Report SAND2001-2100, Albuquerque, NM.
