Concentrated solar power plants can now absorb, store, and transport thermal energy in a whole new way thanks to the innovative Molten Salt System Design for Solar Power Plants. Modern molten salt technology uses specialized nitrate-based thermal storage media that are very stable at temperatures beyond 550°C to allow solar arrays to continue producing power after sunset. In today's competitive solar market, B2B customers looking for dependable, affordable thermal energy storage solutions must understand the complex technical concepts, procurement methodologies, and performance optimization approaches included in this extensive book.
Understanding Molten Salt and Its Role in Solar Power Systems
Thermal salt solutions, which act as both heat transfer fluids and energy storage media, are the foundation of contemporary concentrated solar power facilities. These specific chemical compounds, which are usually made up of combinations of potassium and sodium nitrate as well as Molten Salt formulations, have unusual thermodynamic features that make them perfect for high-temperature industrial applications.
Chemical Composition and Thermal Properties

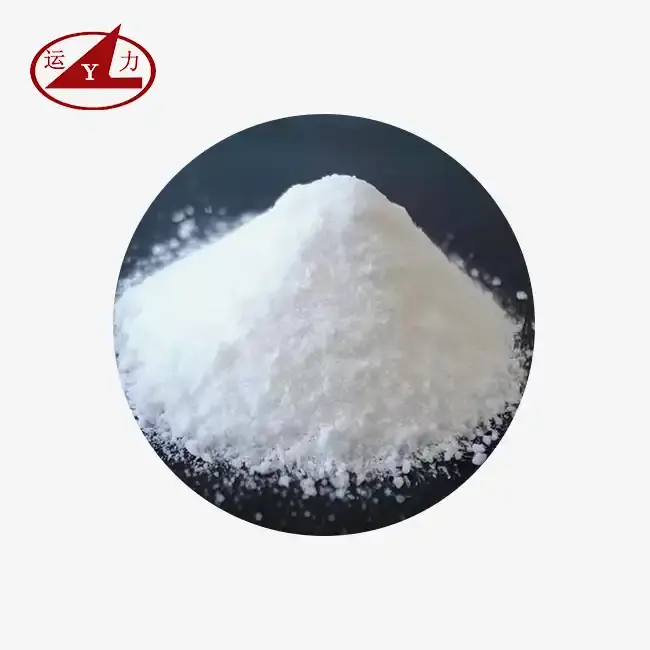

In solar applications, the most often used thermal salts are a 60% sodium nitrate and 40% potassium nitrate mixture called "Solar Salt." With a melting point of 142°C and operating temperatures as high as 565°C, this composition offers exceptional thermal stability across a broad temperature range. During thermal cycling, effective energy absorption and release are guaranteed by the high specific heat capacity of 1.5 kJ/kg·K.
Heat Transfer Mechanisms in CSP Applications
As the thermal salt mixture passes through receiver tubes placed at the focal points of parabolic mirrors or central tower systems, it is heated by concentrated solar radiation during the hottest parts of the day. The heated salt, which reaches temperatures of around 550°C, enters insulated storage tanks where thermal energy may be used to generate power during cloudy or nocturnal operations. Compared to traditional solar photovoltaic systems, CSP plants may attain capacity factors of over 50% thanks to this method.
Core Principles in Designing Molten Salt Systems for Solar Power Plants
Designing a successful thermal salt system requires a thorough understanding of corrosion prevention, material compatibility, and thermal management concepts. In demanding solar applications, engineers must overcome a number of technological obstacles to guarantee long-term dependability and peak performance.
Material Selection and Corrosion Management
For the majority of thermal salt applications, stainless steel grades 316 and 347 provide sufficient corrosion resistance, however specialist alloys such as Inconel 625 perform better in high-temperature environments. The lifetime of equipment is extended beyond 25 years and maintenance expenses are decreased with proper material selection. Chloride content should be regularly monitored to keep levels below 500 ppm to avoid rapid corrosion that might jeopardize system integrity.
Storage Tank Design and Insulation Systems
Advanced insulation methods are required to maintain constant temperatures while accommodating thermal expansion in thermal storage tanks. Refractory insulation and double-wall construction reduce heat loss, usually keeping storage efficiency over 95% for 24 hours. Tank capacity estimations take into account the residence time required for thermal stratification control as well as the energy storage needs.
Flow Control and Circulation Systems
The thermal loop is reliably circulated thanks to centrifugal pumps made especially for high-temperature molten salt operation. Variable frequency drives minimize parasitic power usage by optimizing pump operation depending on energy demand and solar irradiation levels. In order to avoid salt solidification during startup sequences, proper pipe size and layout reduce pressure drops while maintaining sufficient flow velocities.
Comparing Molten Salt with Alternative Thermal Fluids for Solar Applications
A thorough examination of performance traits, operating expenses, and environmental factors is necessary for the evaluation of thermal storage media. In the majority of concentrated solar power applications, thermal salts clearly outperform synthetic oils, liquid metals, and other heat transfer fluids.
Performance Advantages Over Synthetic Oils
Molten salt systems function well at temperatures beyond 550°C without experiencing chemical breakdown, in contrast to synthetic heat transfer oils that break down above 400°C. Steam production at circumstances appropriate for traditional power generating equipment is made possible by this higher working temperature, resulting in thermal-to-electric conversion efficiency of 40%. Fire risks related to organic thermal fluids are eliminated by nitrate salts' non-flammable nature.
Cost Analysis and Economic Benefits
Thermal salt is far less expensive per kilogram than liquid metal substitutes or specialty synthetic oils, costing around $0.50 to $0.80. Favorable lifetime economics are provided by the prolonged operating lifespan, which with appropriate system design often exceeds 30 years. For CSP developers, lower insurance costs as a result of safety benefits further enhance project economics.
Optimizing Performance and Longevity of Molten Salt Systems
Implementing sophisticated monitoring systems, preventative maintenance procedures, and operational optimization techniques are necessary to maximize the performance of thermal salt systems. These methods minimize operational interruptions while guaranteeing steady energy production.
Advanced Monitoring and Quality Control
Proactive maintenance scheduling is made possible by real-time monitoring of salt composition utilizing methods like ICP-MS analysis. Maintaining ideal thermal characteristics is aided by routine testing for impurity concentrations, pH levels, and moisture content. Automated sampling systems provide constant quality control throughout plant operations while lowering personnel expenses.
Thermal Efficiency Enhancement Strategies
Heat transfer coefficients are increased by 15–20% by the use of improved heat exchanger designs, such as helical coil configurations and optimal tube spacing. In order to maximize energy collection at peak circumstances, sophisticated control algorithms synchronize salt circulation with patterns of solar irradiance. In storage tanks, thermal stratification control maintains the availability of high-temperature salt for the production of steam during discharge cycles.
Procurement and Partnership: Working with Trusted Molten Salt Suppliers
Technical support services, quality assurance procedures, and production skills must all be evaluated when choosing trustworthy thermal salt providers. For large-scale solar projects, especially when using Molten Salt solutions, strategic alliances with reputable suppliers guarantee continuous product quality and dependable delivery dates.
Supplier Qualification and Certification Requirements
In addition to offering thorough paperwork such as Material Safety Data Sheets (MSDS), Certificates of Analysis (COA), and environmental compliance certificates, qualified vendors also uphold ISO 9001 quality management systems. With more than 18 years of production experience, yearly sales of more than RMB 1 billion, and recognition as a provincial technological center, Yunli Chemical Co., Ltd. is a prime example of these criteria.
Supply Chain Considerations and Logistics
In order to meet construction timeframes, large-scale CSP projects need bulk amounts of thermal salt with synchronized supply dates. Project risks and logistics expenses are decreased by suppliers that provide regional distribution capabilities, flexible delivery periods, and customized packaging. For certain application needs, the capacity to provide aqueous solutions at different concentrations offers value.
Technical support services that set premium suppliers apart from commodity chemical vendors include on-site consulting and help with system optimization. Free sample amounts up to 500 grams are offered by reputable vendors like Yunli Chemical, allowing for extensive testing and confirmation prior to large orders. Their direct factory supply approach guarantees low pricing for long-term supply agreements while cutting out intermediary fees.
Conclusion
The primary thermal storage option for concentrated solar power facilities across the globe is still molten salt technology. CSP plants may achieve dependable, economical energy storage with operating lifespans longer than 25 years via careful system design, material selection, and supplier collaborations. The increasing use of nitrate-based thermal salts in utility-scale solar projects is supported by their better thermal properties, safety features, and financial benefits. In this quickly growing renewable energy industry, strategic procurement choices that prioritize quality, dependability, and technical assistance guarantee the best possible project results while lowering operating risks.
FAQs
Q1: What safety considerations are important when handling molten salt systems?
A: Appropriate PPE, emergency response protocols, and spill control techniques are necessary for thermal salt systems. Although nitrate salts are safe for the environment and non-flammable, high-temperature activities need skilled workers and the right safety procedures. Throughout plant lifecycles, safe operations are ensured by regular safety training and emergency readiness.
Q2: How does molten salt performance compare to lithium-ion battery storage for grid-scale applications?
A: For long-duration storage applications, usually lasting 4–8 hours or more, thermal salt storage provides noticeably reduced costs per MWh. Although lithium-ion batteries have quicker reaction times, molten salt systems work best in applications that need long-term, continuous energy discharge. For utility-scale installations, thermal salt systems provide better lifetime economics because to their 25+ year lifespan.
Q3: What maintenance requirements are typical for molten salt systems in CSP plants?
A: Quarterly salt sampling for chemical analysis, yearly storage tank and pipe system inspections, and sporadic pump seal and gasket replacements are all examples of routine maintenance. Major overhauls are usually planned every ten to fifteen years, and proper system design reduces the need for maintenance. Programs for preventive maintenance minimize unscheduled downtime and guarantee consistent performance.
Partner with Yunli Chemical for Superior Molten Salt Solutions
With two decades of manufacturing excellence and recognition as a provincial technological center, Yunli Chemical is your go-to source for molten salt and high-performance thermal storage solutions. Our customized heat transfer salt formulas provide outstanding value via direct factory pricing and thorough technical assistance, all while meeting the exacting standards of the CSP industry. Are you prepared to use dependable thermal storage technology to maximize your solar power project? Contact us at wangjuan202301@outlook.com for customized quotations, technical consultations, and free sample evaluations up to 500 grams.
